    A Scientific Guide to Solar Tracking Systems, Technologies, and Applications

    Lakisha DavisBy Lakisha DavisSeptember 3, 2025
    Facebook Twitter Pinterest LinkedIn Tumblr Email
    A Scientific Guide to Solar Tracking Systems, Technologies, and Applications
    Share
    Facebook Twitter LinkedIn Pinterest Email

    The global shift to renewable energy has positioned solar photovoltaics (PV) as a leader in new power generation. The core challenge in solar energy is maximizing efficiency, which involves not only improving the solar cells themselves but also optimizing the amount of sunlight the panels receive. This is the fundamental purpose of a solar tracking system, an advanced electromechanical device designed to orient a PV system toward the sun, maximizing energy capture throughout the day and across all seasons.

    Fundamentals of Solar Tracking

    The power generated by a PV cell is directly proportional to the solar irradiance it captures. The single most important factor influencing this is the angle of incidence—the angle between incoming sun rays and a line perpendicular to the panel’s surface. The goal of any sun tracking solar system is to minimize this angle, because as it increases, the effective surface area exposed to the sun decreases by a factor of the cosine of the angle (cos(θ)). This phenomenon is known as the cosine error.[1]

    For a stationary, fixed-tilt system, the impact is substantial. A fixed panel is typically oriented for optimal exposure at midday, meaning it experiences large angles of incidence in the early morning and late afternoon. Analysis reveals that a fixed panel can lose over 75% of its potential energy when the sun is at a low 75° angle off-perpendicular.[1] A solar tracking device is engineered to compensate for the sun’s two primary movements: its daily east-to-west transit (diurnal motion) and its seasonal north-to-south shift. By correcting for these movements, trackers dramatically increase total energy yield.

    Core Mechanical Components

    A PV tracking system is a sophisticated assembly of structural, mechanical, and electronic parts working in unison.

    • Structure: The system starts with a robust racking framework holding the PV modules. This framework is built on foundational posts or pylons, uses bearings for smooth rotation, and often employs long torque tubes to transmit rotational force from a single drive unit across an entire row of panels.
    • Drive Systems: The “muscles” of the tracker are the actuators. The most common are electromechanical systems using DC or stepper motors combined with gear systems like slew drives and worm gears to produce high-torque, low-speed rotation. For extremely heavy loads, hydraulic systems are sometimes used.
    • Control Architecture: The “brain” of the tracker directs its movement. It consists of sensors, a controller, and software. Sensors include light sensors (photocells, LDRs) to find the sun, anemometers to measure wind speed for safety, and inclinometers to provide feedback on the panel’s tilt. The controller—a microcontroller or PLC—processes this data and executes pre-programmed algorithms to command the drive system. In utility-scale plants, these are often managed by a central SCADA system.

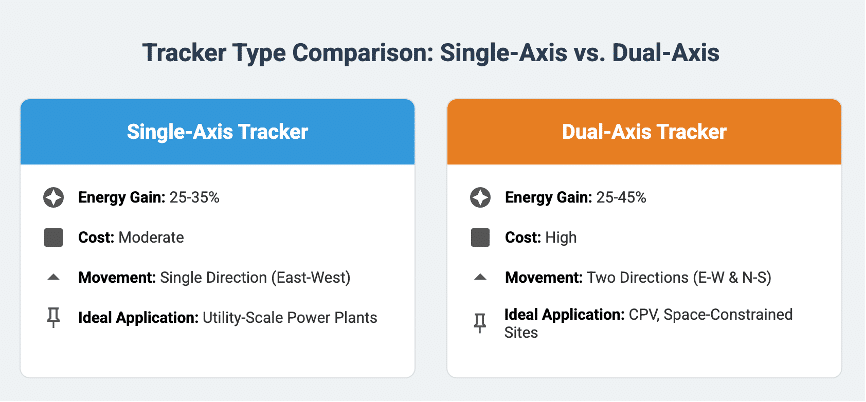

    Types of Solar Tracking Systems

    1. Single-Axis Trackers

    Single-axis trackers rotate on one axis, typically following the sun’s daily east-to-west path. This single motion captures the vast majority of potential energy gain, making it the dominant technology for large-scale projects due to its excellent balance of performance gain versus cost. They are rightly considered the industry’s workhorse, boosting annual energy production by 25% to 35% over fixed-tilt systems.[2] This increased output leads to a lower Levelized Cost of Energy (LCOE), making them economically compelling.

    Sub-types include:

    • Horizontal Single-Axis Tracker (HSAT): The most common type, with a horizontal axis of rotation aligned north-south. It is highly effective in low-latitude regions.
    • Horizontal Tilted Single-Axis Tracker (HTSAT): The axis is tilted to better capture seasonal sun height, making it more suitable for higher-latitude locations.
    • Vertical Single-Axis Tracker (VSAT): With a vertical axis of rotation, this design can be useful at very high latitudes but may suffer from inter-row shading.

    2. Dual-Axis Trackers

    A dual-axis solar tracking system offers two independent axes of rotation, allowing it to follow the sun’s path perfectly, both daily and seasonally. This precision results in the highest possible energy gains, increasing annual output by 40-50% compared to fixed-tilt installations, reaching a peak value of up to 45% in optimal conditions.[3]

    However, this performance comes at a steep price. Dual-axis systems are mechanically complex, which can potentially double the total project cost, introduce more points of failure, and increase long-term Operation & Maintenance (O&M) needs. For this reason, their use is limited to niche applications where maximizing output per unit of area is the absolute priority, such as in Concentrated Photovoltaics (CPV) or on small residential or commercial sites with severe space constraints.

    Drive System Classification

    • Active Trackers: These are the most prevalent systems, relying on motors, controllers, and sensors to precisely position the solar array. They offer the highest performance and accuracy.
    • Passive Trackers: These simpler systems operate without external power, often using a low-boiling-point fluid that shifts from side to side as the sun heats it, causing the array to tilt. They are less expensive but also far less accurate and are not suitable for most utility-scale applications.
    • Manual Trackers: This method requires a human operator to physically adjust the panels. While it has the lowest initial cost, it is impractical and inefficient for virtually all modern applications.

    The Intelligence Behind the Movement: Controls & Algorithms

    Control Loop Architectures

    • Open-Loop (Astronomical): This control strategy does not use real-time light sensors. Instead, it relies on a pre-programmed astronomical algorithm that calculates the sun’s precise position based on the tracker’s geographical coordinates (from GPS), date, and time. Its primary advantage is its reliability, as it is unaffected by cloud cover or dirty sensors.
    • Closed-Loop (Sensor-Based): This strategy uses a feedback loop from light sensors to move the tracker until the light intensity is balanced, pointing the array at the brightest spot in the sky. It is highly accurate in clear conditions but can be “confused” by diffuse light on overcast days.
    • Hybrid Systems: The most advanced modern trackers use a hybrid approach, using the reliable chronological algorithm for primary positioning and sensor data for fine-tuning, combining the best of both worlds.

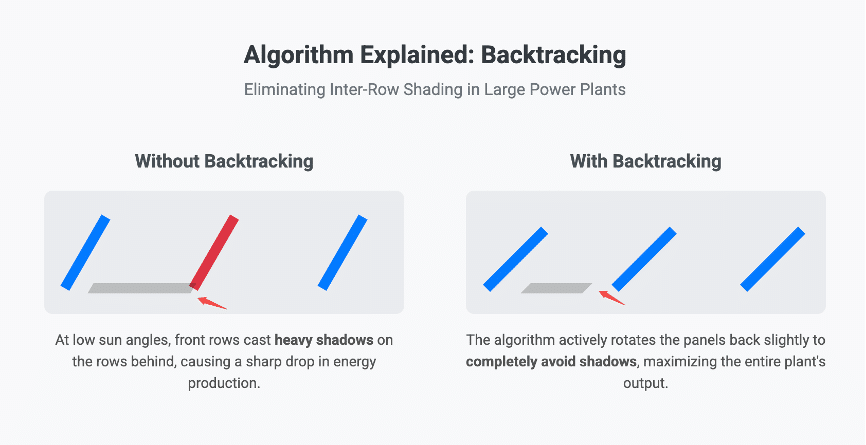

    Backtracking: Eliminating Self-Shading in Power Plants

    In large, multi-row solar farms, a major challenge is “self-shading,” where one row of trackers casts a shadow on the row behind it during early morning and late afternoon. The backtracking algorithm is a crucial software innovation designed to prevent this. When shading is imminent, the algorithm commands the panels to reverse direction slightly, tilting back toward a flatter angle to retract the shadow. While this introduces a minor cosine loss, it is vastly preferable to the severe electrical losses caused by shading, thereby maximizing the entire plant’s output. Advanced 3D backtracking uses detailed topographical maps to create unique backtracking angles for each tracker on uneven or sloped terrain.

    The Next Frontier: AI, ML, and Smart Tracking

    Artificial Intelligence (AI) and Machine Learning (ML) are transforming the PVtracking system from a reactive device to a predictive, adaptive asset.

    • Diffuse Light Optimization: On overcast days, most energy comes from diffuse light. An AI system can recognize this condition using weather data and command the panels to a horizontal “stow flat” position, which maximizes their view of the entire sky and can increase energy capture by up to 7.83% compared to standard tracking.[4]
    • Smart Weather Defense: By integrating with weather forecasts, a smart tracker can proactively move to a defensive stow position—such as maximum tilt to deflect hail or flat to minimize wind load—before severe weather arrives, reducing the risk of physical damage.
    • Predictive Maintenance: ML models can continuously analyze a tracker’s operational data (e.g., motor current, vibration) to detect anomalies that signal a future failure, enabling repairs before a breakdown occurs and minimizing downtime.

    Real-World Application & Performance

    The decision to deploy a solar array tracking system is a complex one, depending on scale, geography, and climate.

    Applications by Scale

    The utility-scale segment is the largest and most important market for solar trackers. For these large power plants, the significant energy yield gains (25-35%) offered by single-axis trackers almost always justify the added cost, as they result in a lower LCOE. Consequently, single-axis tracking is the de facto standard for utility-scale solar development. While trackers are also used in large commercial systems to maximize energy density on limited land, their use in the residential market is rare due to higher upfront costs, maintenance needs, and a larger physical footprint.

    Geographical and Climatic Influence

    • Latitude: Near the equator, where the sun’s path is consistently high, a simple HSAT is highly effective. At higher latitudes, where the sun’s seasonal height varies dramatically, a tilted (HTSAT) or dual-axis tracker provides a significant advantage by being able to tilt toward the low winter sun.
    • Irradiance: The effectiveness of a tracker depends on the type of sunlight. In arid, clear-sky regions with high Direct Normal Irradiance (DNI), trackers are extremely effective because they keep the panel perpendicular to the direct beam. In regions with frequent cloud cover and high Diffuse Horizontal Irradiance (DIF), the benefit of tracking is diminished, and a fixed-tilt system may be more economical.

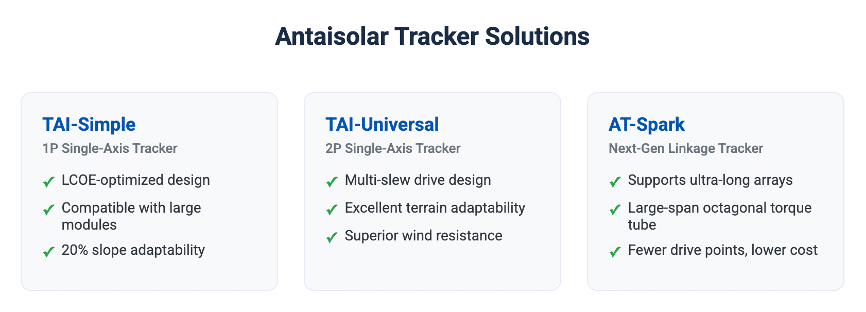

    Antaisolar’s Solar Tracking Solutions

    Antaisolar is a key global player that showcases the advanced technology defining the modern tracker market. Their portfolio is designed to address a range of project scenarios.

    • TAI-Simple: This is a 1P (one-module-in-portrait) single-axis tracker, optimized for LCOE on large-scale projects. It features a wide ±60° tracking range and an impressive north-south slope tolerance of up to 20%, reducing the need for land grading.
    • TAI-Universal: A 2P (two-modules-in-portrait) tracker designed for challenging terrain and harsh weather. Its patented multi-slew drive design enhances stability and resilience to high wind loads, making it ideal for complex sites.
    • AT–Spark: This next-generation tracker is a 1P multi-slew linkage system engineered to support ultra-long arrays, further reducing the number of foundations and components per megawatt to drive down costs.

    The intelligence powering these systems is the AT 3.0 smart tracking algorithm. It incorporates terrain-aware smart backtracking that also optimizes for bifacial modules, maximizing energy capture from both the front and rear sides of the panels. The platform also includes a pre-emptive severe weather defense system that automatically stows trackers for protection against high winds, hail, and snow.

    Conclusion

    The solar tracking system has undergone a profound evolution. It began as a mechanical solution to a physics problem, the cosine error. Today, it stands as a sophisticated, intelligent asset where advanced software, AI, and data analytics are the primary drivers of value and performance. The tracker is no longer an accessory but a critical, integrated system for optimizing economic returns and ensuring operational resilience.

    The future of solar tracking lies in this trajectory toward greater intelligence and system-level integration. Success will be defined by solutions that optimize not just for sunlight, but for the complex, synergistic demands of land use (as in agrivoltaics), energy storage, and the 21st-century electricity market, turning every captured photon into a cornerstone of a sustainable energy future.
