If you’re exploring the mechanics behind four-wheel drive (4WD) systems, understanding the components involved is essential. One crucial but often overlooked part is the transfer case. Many people ask, what is a transfer case and what role does it play in a 4WD system? This component is key to distributing power from the transmission to both the front and rear axles, enabling your vehicle to handle diverse terrains and driving conditions. This article dives into what a transfer case does in a 4WD system, how it functions, and why it’s important for off-road performance and everyday driving.
What Is a Transfer Case?
A transfer case is a gearbox that works alongside the vehicle’s transmission to direct power to multiple drive shafts. In a 4WD or all-wheel drive (AWD) vehicle, it splits the engine’s torque between the front and rear axles. Without the transfer case, the vehicle wouldn’t be able to operate in 4WD mode because power would only be sent to one axle.
Typically mounted directly behind the transmission, the transfer case manages power flow based on driving modes selected by the driver or automatic vehicle systems.
Basic Functions of a Transfer Case
The main job of a transfer case is to distribute torque efficiently and effectively. Key functions include:
- Power Distribution: Sends engine power to both front and rear axles simultaneously or selectively.
- Mode Selection: Allows the driver to switch between 2WD and 4WD modes, including high and low ranges.
- Speed Adjustment: In some vehicles, it adjusts gear ratios to provide more torque in low-range mode for off-road conditions.
- Synchronization: Helps coordinate the rotation speeds of front and rear driveshafts to prevent drivetrain damage.
Types of Transfer Cases
There are several types of transfer cases used in 4WD systems, each with distinct mechanisms and capabilities:

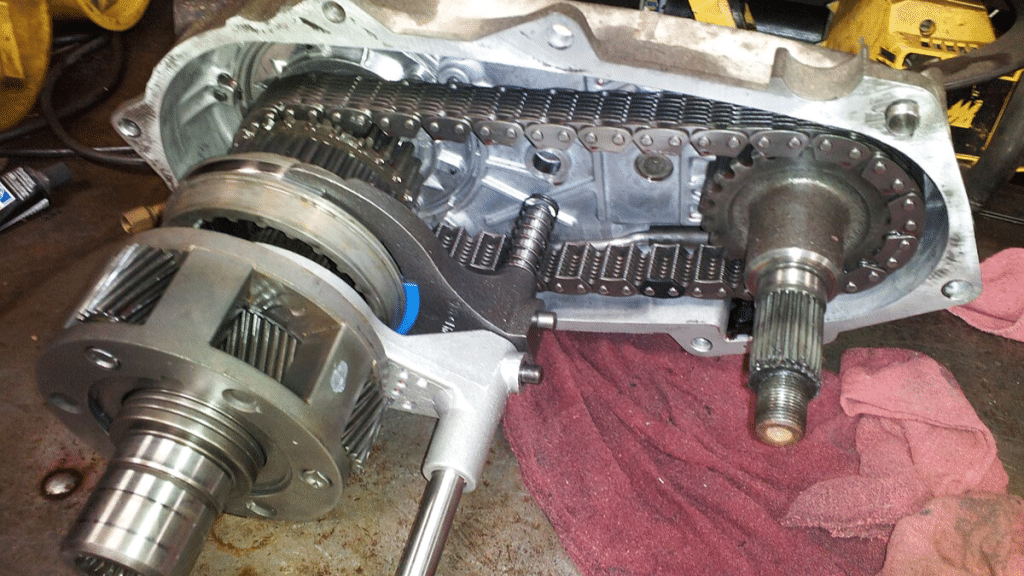

- Chain-Driven Transfer Case: Uses a chain to transfer power to the front driveshaft. Chain-driven cases are quieter and lighter but may have less durability in extreme conditions.
- Gear-Driven Transfer Case: Employs gears instead of chains, offering higher strength and durability, favored in heavy-duty and off-road vehicles.
- Single-Speed Transfer Case: Provides only one gear ratio, usually for basic 4WD operation without low-range capabilities.
- Two-Speed Transfer Case: Includes both high and low gear ranges, giving the vehicle more torque at low speeds for tough terrain or towing.
How Does the Transfer Case Work?
When the vehicle is in 2WD mode, the transfer case sends power only to the rear wheels (in most cases). When you engage 4WD, the transfer case splits power between front and rear axles. Depending on the system, this split can be equal (50/50) or biased toward one axle.
In low-range mode, the transfer case uses a lower gear ratio, multiplying torque to help the vehicle crawl over obstacles, climb steep hills, or tow heavy loads at slow speeds. Switching between modes can be done manually via a lever or electronically through buttons or switches.
Transfer Case and Drivetrain Coordination
The transfer case works in conjunction with other drivetrain components like the transmission, driveshafts, differentials, and axles. Its ability to synchronize front and rear axle speeds prevents binding and wear, especially on dry pavement.
Some modern transfer cases include a center differential or electronic controls that adjust torque distribution dynamically, improving traction and stability under various driving conditions.
Signs of Transfer Case Problems
Because the transfer case is critical to 4WD operation, problems can seriously affect vehicle performance. Common signs of transfer case issues include:
- Difficulty shifting into or out of 4WD mode.
- Unusual noises such as grinding, whining, or clunking from underneath the vehicle.
- Leaking fluid around the transfer case area.
- Vibration or shuddering when driving in 4WD.
- Warning lights or error codes related to drivetrain or traction control.
Early diagnosis and repair can prevent costly damage to the transfer case and other drivetrain parts.
Maintenance Tips for Transfer Cases
Proper maintenance helps extend the life of your transfer case and ensures smooth 4WD operation. Recommended practices include:
- Regular Fluid Checks and Changes: Transfer case fluid lubricates internal components and prevents overheating. Follow your vehicle’s service schedule for fluid replacement.
- Inspect for Leaks: Check for fluid leaks around seals and gaskets that could lead to damage.
- Engage 4WD Periodically: Running the 4WD system occasionally, even on dry pavement, helps keep the transfer case components lubricated and functioning.
- Professional Inspection: Have your transfer case inspected by a qualified mechanic during routine service or if you notice symptoms of trouble.
Transfer Case vs. Differential: What’s the Difference?
Many confuse the transfer case with differentials, but they serve distinct roles. The transfer case distributes power between front and rear axles, while differentials distribute power between the left and right wheels on each axle. Both are vital for proper traction and handling, especially in off-road and slippery conditions.
Transfer Case in Part-Time vs. Full-Time 4WD Systems
- Part-Time 4WD: The transfer case allows the driver to manually engage 4WD when needed. This system generally uses a two-speed transfer case with low-range gearing.
- Full-Time 4WD/AWD: The transfer case automatically distributes power between axles as required without driver input. These systems may incorporate a center differential or clutch pack for smooth torque distribution.
How Transfer Case Technology Is Evolving
Modern vehicles feature advanced transfer cases integrated with electronic controls and sensors. These “smart” transfer cases communicate with traction control and stability systems, adjusting torque delivery instantly based on driving conditions.
Some transfer cases also offer shift-on-the-fly capabilities, letting drivers switch between 2WD and 4WD at higher speeds without stopping, enhancing convenience.
Importance of the Transfer Case in Off-Road Driving
For off-road enthusiasts, the transfer case is arguably the most critical component of the 4WD system. Low-range gearing and precise torque distribution allow vehicles to tackle mud, rocks, steep inclines, and uneven terrain safely.
A reliable transfer case enhances vehicle capability and driver confidence, enabling adventures that would be impossible with 2WD alone.
Common Transfer Case Repairs and Rebuilds
Transfer cases are durable but can wear over time due to heavy use or neglect. Common repairs include:
- Replacing worn bearings or seals.
- Repairing or replacing chain or gear components.
- Fixing fluid leaks.
- Addressing electronic control module failures in modern systems.
In some cases, a complete transfer case rebuild or replacement may be necessary.
Choosing the Right Transfer Case for Your Vehicle
If you’re modifying your 4WD vehicle or selecting between models, understanding transfer case types helps tailor your choice to your needs. Gear-driven, two-speed transfer cases are preferred for serious off-road use, while chain-driven single-speed cases suffice for light 4WD applications.
Conclusion
Enabling multiple driving modes, and enhancing traction on challenging terrain. Whether you’re an off-road adventurer or simply need a vehicle that handles varying road conditions, the transfer case is a vital part of your drivetrain.
Proper maintenance, timely repairs, and knowing how your transfer case operates can prolong its lifespan and keep your 4WD vehicle performing at its best. With this knowledge, you’re better equipped to care for your vehicle and enjoy the benefits of four-wheel drive confidently.
